Insulated Tube Motor Roller Shutter
A compact, energy-efficient solution for smaller openings requiring thermal and acoustic performance.
An insulated tube motor roller shutter combines a compact internal motor with a double-skin insulated curtain, providing improved thermal performance, reduced noise transmission and enhanced overall efficiency.
Key points:
-
Motor housed within the barrel
-
Double-skin insulated laths with polyurethane core
-
Designed for smaller to medium openings
-
Ideal where heat retention or noise reduction is important
Insulated tube motor roller shutters offer an effective balance between performance and practicality. They are designed to improve internal comfort while helping to reduce energy loss and noise transmission.
Their compact design makes them particularly suitable for applications where space is limited but insulation is still important.

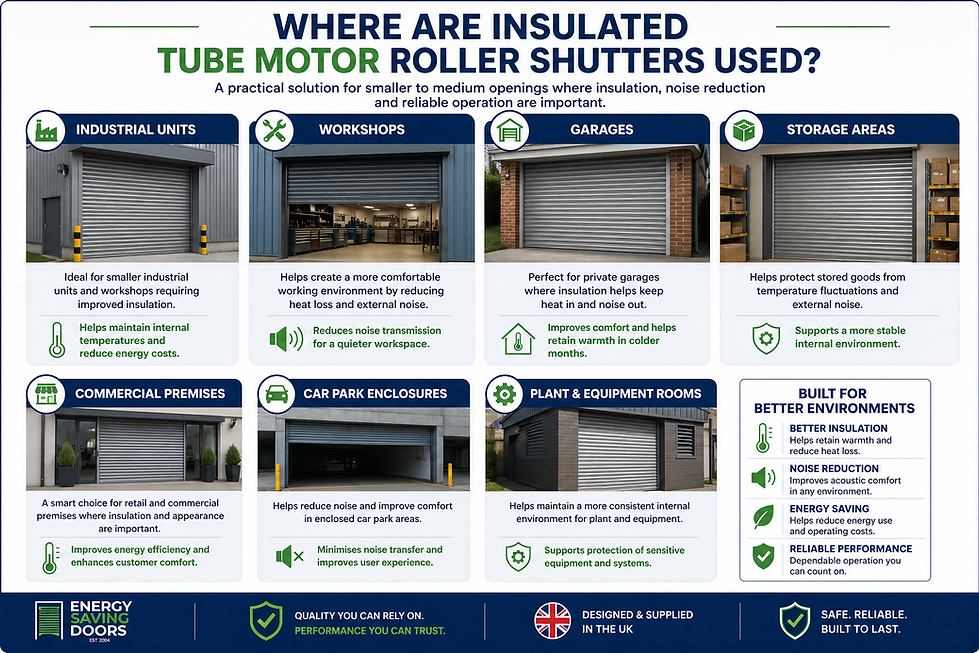

Where Are They Used?
These shutters are commonly used in smaller industrial units, workshops, garages, storage areas and commercial premises, offering a practical solution where insulation, noise reduction and reliable operation are important, and where only low daily usage is required.
Key Benefits of Tube Motor Insulated Shutters
Insulated tube motor roller shutters offer an effective balance between performance and practicality. They are designed to improve internal comfort while helping to reduce energy loss and noise transmission.
Their compact design makes them particularly suitable for applications where space is limited but insulation is still important.
Thermal Performance / U-Value
The insulated lath is engineered to provide a balance of strength, efficiency and everyday usability.
-
Twin-skin steel construction for strength and durability
-
High-density polyurethane core for thermal insulation
-
Reduced noise transmission for quieter environments
-
Lightweight design for smooth operation
Acoustic Performance
The insulated curtain provides an acoustic rating of approximately 22dB, helping to reduce noise transmission between internal and external environments.
This makes the shutter particularly suitable for workshops, commercial premises and buildings where a quieter working environment is preferred.

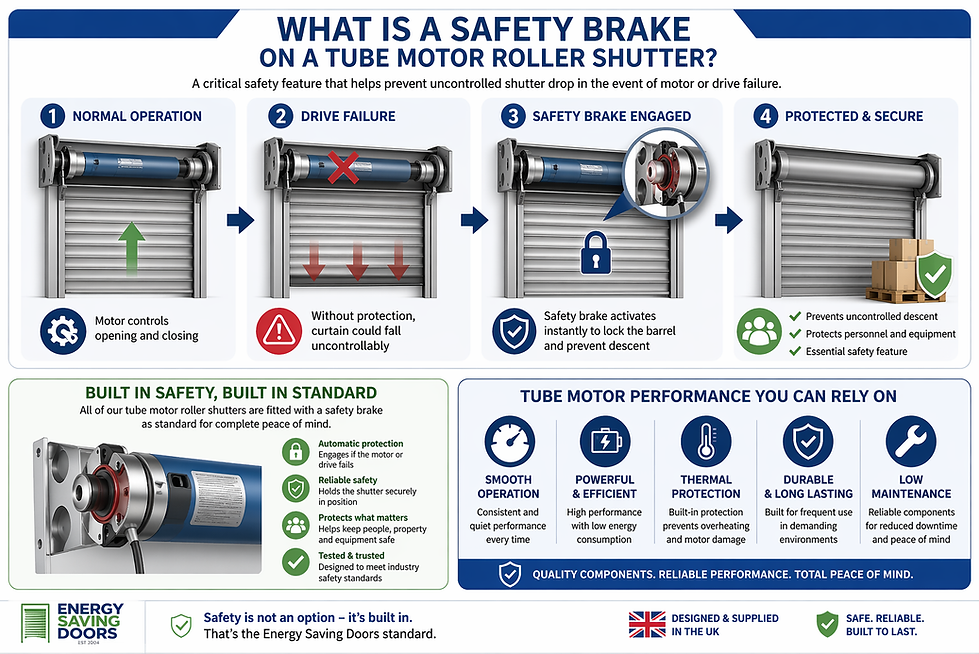

Safety Features
All insulated tube motor roller shutters are fitted with a safety brake as standard.
In the unlikely event of a motor or drive failure, the safety brake activates instantly to prevent uncontrolled descent of the shutter curtain, helping to protect personnel, equipment and the surrounding area.
Finishes & Colour Options
As standard, our roller shutter laths are supplied in a galvanised steel finish, providing a durable and cost-effective base level of corrosion protection suitable for many internal and external applications.
PLASTISOL COATED FINISH
For enhanced durability and appearance, laths can be supplied with a Plastisol coating.
Plastisol is a factory-applied PVC-based coating, typically around 200 microns thick, which is bonded to the steel during manufacture. This creates a tough, flexible outer layer that offers:
-
Excellent resistance to weathering and corrosion
-
Increased durability compared to standard painted finishes
-
A consistent, attractive surface finish
-
Low maintenance over time
Plastisol is available in a range of standard colours (as shown), making it a popular choice where both performance and appearance are important.
However, due to manufacturing constraints, colour availability can be more limited on larger shutter sizes, and certain colours may be subject to availability or minimum production runs.
POLYESTER POWDER COATING
For projects requiring a specific or branded colour, polyester powder coating offers complete flexibility.
This process involves applying a dry powder to the steel surface, which is then oven baked to create a hard, durable finish. The key advantages are:
-
Virtually unlimited colour choice (full RAL spectrum)
-
Excellent colour consistency for branding or architectural matching
-
Strong resistance to fading and UV exposure
-
Suitable for both internal and external environments
Powder coating is typically applied after manufacture, allowing for a fully customised finish tailored to your exact requirements.
CHOOSING THE RIGHT FINISH
-
Galvanised – practical, cost-effective protection
-
Plastisol – durable, factory-finished coating in a range of standard colours
-
Powder Coated – fully bespoke colour options for complete design flexibility
-
Choosing the right finish allows you to balance durability, appearance and cost — ensuring your shutter performs well and looks the part for years to come.
Servicing Legal Obligations
Understand your legal obligations and ensure your roller shutters remain safe, compliant and efficient.
Explore our guides to legal requirements and what’s included in a professional service visit to keep your doors operating at peak performance.
Is this the right shutter for you?
Choosing the correct door is essential to ensure long-term performance and reliability.
✔ Ideal if:
-
You require improved insulation compared to a standard shutter
-
The opening is relatively small
-
Daily usage is low
-
Noise reduction is beneficial
✖ Not ideal if:
-
The door will be used frequently throughout the day
-
The opening is large or heavily used
-
Fast opening speeds are required
-
You need strict temperature control (e.g. cold rooms)
For higher usage or more demanding environments, a 3ph shutter or high speed door may be a more suitable solution.
