External High Speed Door
Engineered for Performance in Harsh UK Conditions
External high speed doors are designed to operate reliably in exposed openings where wind, weather and intensive daily use are key considerations.
By combining rapid opening speeds (up to 1,000mm per second) with robust construction and advanced safety systems, these doors help reduce heat loss, maintain internal conditions and keep operations moving efficiently.
Whether installed on warehouses, loading bays or production facilities, external high speed doors provide a durable, energy-efficient solution for demanding industrial environments. As one of the most widely used forms of industrial high speed doors, they are particularly effective where environmental control and operational efficiency are both important.”
Why Chose as External High Speed Door?
External openings present unique challenges — including wind exposure, temperature loss and operational delays.
Our external high speed doors are specifically designed to address these:
-
Reduce heat loss by minimising door open time
-
Withstand wind loading with designs tested up to Class 5
-
Maintain workflow efficiency in high traffic environments
-
Improve internal conditions by limiting draughts, uncontrolled airflow and the problems associated with air leakage and draught control in busy industrial buildings.
-
Enhance safety with integrated protection systems
-
Deliver long service life with low maintenance requirements
Performance You Can Rely On
External high speed doors must do more than open quickly — they must perform consistently in real-world conditions.
Our doors are engineered to deliver:
-
Opening speeds up to 1,000mm per second
-
Wind resistance up to Class 5 (subject to size and configuration)
-
High-frequency operation for intensive daily use
-
Advanced safety systems, including photo cells and safety edges
-
Self-repairing curtain technology to minimise downtime after impact
For applications requiring a combination of rapid operation, improved insulation and enhanced physical security, some sites may also consider high speed roller shutter doors. These systems combine the operational speed associated with fabric high speed doors with the robustness and security of an insulated steel roller shutter.
With an installed base of hundreds of doors across the UK, these systems are proven to perform in exposed environments.
Why Door Speed Matters
In many industrial environments, the greatest energy losses do not occur through walls or roofs, but through frequently used door openings. Every additional second that a door remains open allows warm air to escape and external air to enter the building.
By dramatically reducing open-door exposure time, external high speed doors can help improve thermal stability, reduce draughts and support better environmental control throughout the facility. This is particularly important in warehouses, manufacturing areas and logistics operations with constant vehicle movements.
What does an External High Speed Door Save You?
The key benefit of a high speed door is simple — it reduces the amount of time your building is open to the outside environment. In many industrial buildings, a surprisingly large proportion of energy waste is caused by heat loss through open doors during daily operation
In practical terms, this can deliver:
-
Significant reductions in heat loss
-
Lower energy costs through improved thermal control
-
Reduced strain on heating systems
-
Improved working conditions for staff
-
Faster movement of goods and vehicles
In many cases, the energy savings alone can contribute towards a rapid return on investment, helping to reduce the overall payback period of the door installation.
Want to See the Potential Energy Savings for Your Site?
Every industrial operation is different. Traffic levels, opening size, operating temperatures and door usage can all have a major impact on energy loss and operational efficiency.
We can provide an indicative ROI and energy saving analysis based on your application, helping you understand the potential financial and operational benefits of upgrading to a high speed door solution.
To prepare your assessment, please provide the following information where possible:
-
Opening width and height
-
Existing door type
-
Approximate open time per cycle
-
Estimated door activations per hour
-
Internal operating temperature
-
Proposed operating environment (warehouse, manufacturing, loading bay etc.)
-
Existing energy cost per kWh (if known)
-
Estimated operating hours per day
-
Estimated operating days per year
Where specific information is not provided, the following standard assumptions may be used within the analysis:
-
Electricity cost: 24p per kWh
-
Operating hours: 12 hours per day
-
Operating days: 250 days per year
-
Average external daytime ambient temperature: 13.5°C
The analysis is intended as an indicative guide only, but it can provide a useful illustration of the potential reduction in open-door exposure, estimated annual energy savings and indicative payback period.
REQUEST YOUR FREE R.O.I. ASSESSMENT
Advise us these details and our team will prepare a tailored high speed door energy saving analysis for your application.

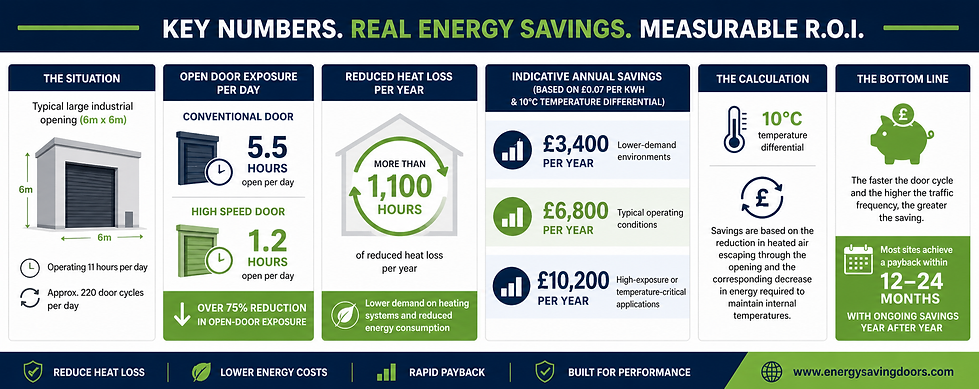

Real Energy Savings. Measurable R.O.I.
Based on a typical large industrial opening (6m x 6m), operating across an 11-hour day with approximately 220 door cycles, a conventional door can remain open for around 5.5 hours per day. In comparison, a high speed door reduces this to approximately 1.2 hours per day—a reduction of over 75% in open-door exposure.
This equates to more than 1,100 hours of reduced heat loss per year, directly lowering the demand on heating systems and significantly cutting energy consumption.
Using a benchmark energy cost of £0.07 per kWh and a 10°C temperature differential, the indicative annual savings are:
-
£3,400 per year in lower-demand environments
-
£6,800 per year under typical operating conditions
-
Up to £10,200 per year in high-exposure or temperature-critical applications
These calculations are based on the reduction in heated air escaping through the opening, combined with the corresponding decrease in energy required to maintain internal temperatures. The faster the door cycle and the higher the traffic frequency, the greater the saving.
In real terms, this means most sites achieve a payback within 12–24 months, with ongoing savings year after year.
Designed for High Wind Environments
External door openings—particularly on loading bays and exposed elevations—can be subject to significant wind pressures. In these situations, selecting a door with the correct wind resistance classification is critical to ensure safe operation, reliability, and long-term performance.
Our external high speed doors have been independently performance tested by the Building Research Establishment (BRE) and achieve the highest wind resistance classification (Class 5), providing confidence in even the most demanding conditions.
While there is a relationship between pressure and wind speed, it is important to note that laboratory test conditions and real-life environments are not directly equivalent. Explore more about wind resistance and windload testing.
Suitable Applications
External high speed doors are specifically designed for openings exposed to wind, weather and high traffic levels, where reliability, speed and environmental control are critical.
They are ideally suited to the following applications:
Warehouses and distribution centres
High volumes of vehicle movements and frequent door cycles make speed essential. External high speed doors help maintain workflow while significantly reducing heat loss at loading points.
Manufacturing and production facilities
Where production environments require consistent internal conditions, these doors minimise disruption from external air ingress while supporting efficient movement of goods and materials.
External loading bays and service yards
Often the most exposed areas of a building, loading bays benefit from doors that can withstand wind pressure, resist weather ingress and operate reliably in demanding conditions.
Logistics and transport hubs
Fast-paced environments with continuous traffic demand durable, high-speed operation. These doors reduce delays while improving energy efficiency across large openings.
Temperature-controlled environments
Where maintaining internal temperatures is critical, external high speed doors help limit heat loss and reduce the load on heating systems, particularly in high-use openings.
Facilities in exposed or high-wind locations
Sites positioned in open or elevated areas require doors engineered for wind resistance and long-term durability. High-performance designs ensure consistent operation even in severe conditions.
Each installation is assessed individually to ensure the door specification matches the operational demands, environmental exposure and performance requirements of the site.
If you are unsure whether an external high speed door is the right solution, you may also wish to consider internal high speed doors or a ZIP door for separating internal areas within a building where environmental separation and reduced airflow are priorities.

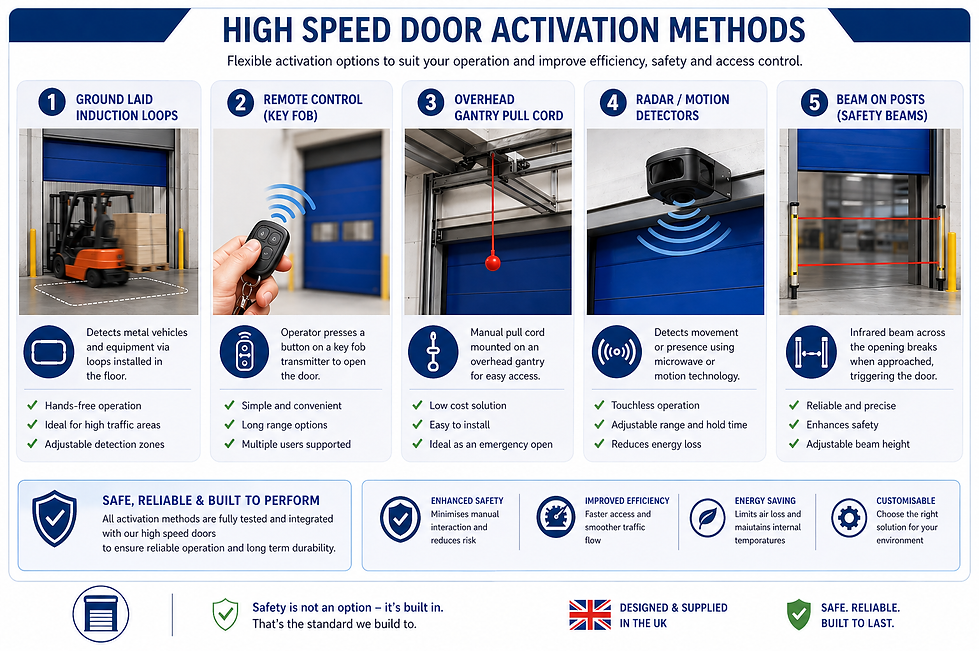

High Speed Doors Activation Methods
Selecting the correct activation method is critical to achieving the full performance potential of your high speed door. The right solution not only ensures smooth and reliable operation, but also enhances site safety, reduces energy loss, and improves traffic flow.
From fully automated detection systems to simple manual controls, each activation method is suited to different operational demands, environments, and levels of usage.
The guide below outlines the most common options to help you identify the best fit for your application.
Professional Installation from Survey to Commissioning
We provide a complete service to ensure your door is correctly specified and installed for long-term performance.
From initial survey through to final commissioning, every stage is managed by experienced engineers.
Why Work With Us?
We are specialists in high speed door solutions, supplying and installing systems across the UK.
-
In-house UK manufacturing, with all key suppliers based locally in the West Midlands
-
Proven at scale, with hundreds of high speed doors installed across a wide range of industries
-
Trusted by the trade, with a significant proportion of our production supplied to industrial door professionals
-
Designed for real-world performance, refined through continuous use in demanding environments
-
Free site survey and expert specification advice
-
Solutions tailored to your exact operational and environmental requirements
Visitors are welcome to our West Midlands facility, where you can see our manufacturing process and product quality first-hand.
Our focus is on delivering doors that perform reliably, reduce energy loss and support your operation long term — backed by practical experience and a strong track record in the field.
Get a Quote for External High Speed Doors
If you are considering external high speed doors for your facility, we offer practical advice and straightforward pricing based on your exact requirements.
Start with a free, no-obligation discussion — and leave with a clear recommendation.
We can help you:
-
Identify the right type of high speed door for your application
-
Assess potential energy savings
-
Provide a clear, competitive quotation
-
Arrange a site survey if required
👉 Request your free quote today or call us to discuss your project.
